Features

Integration with Lync/Skype for Business Server

Kinnex Media Gateway acts as a full functional client for Lync/SfB Server on the one hand and as a registrar for IP phones on the other. It adapts protocols and functions of each IP phone to the Lync requirements, allowing users to take advantage of the full range of Lync features.

Optimal infrastructure

Protect and extend your investments! Kinnex Media Gateway allows you to select the most suitable IP phones for your employees. The optimal internal architecture based on the Kinnex VoIP Engine allows you to effectively use server resources and easily integrate the solution in the Lync/SfB topology.

Centralized management

Kinnex Media Gateway is configured automatically while installing using existing Lync/SfB Server topology. For group management of IP phones, we designed the abilities to install and upgrade firmware, provision settings, block device access, gather statistics and monitoring.

Advanced capabilities

We also provide advanced capabilities for IP phone pools connected to Kinnex Media Gateway such as Paging, Intercom, and Hot Line. These increase usability and make employee collaboration more effective.

Security

Kinnex Media Gateway includes support for SRTP (Secure Real-time Transport Protocol) and TLS (Transport Layer Security) protocols for encrypting SIP and RTP (media streams) traffic between IP phones and Lync/SfB Server.

Depending on the number of IP phones and telephony usage, Kinnex Media Gateway can be installed on a dedicated server as well as on existing PC with one of Lync/SfB topology server role. Collocation is possible along with the Standard Edition Server, Mediation Server or SBA/SBS.

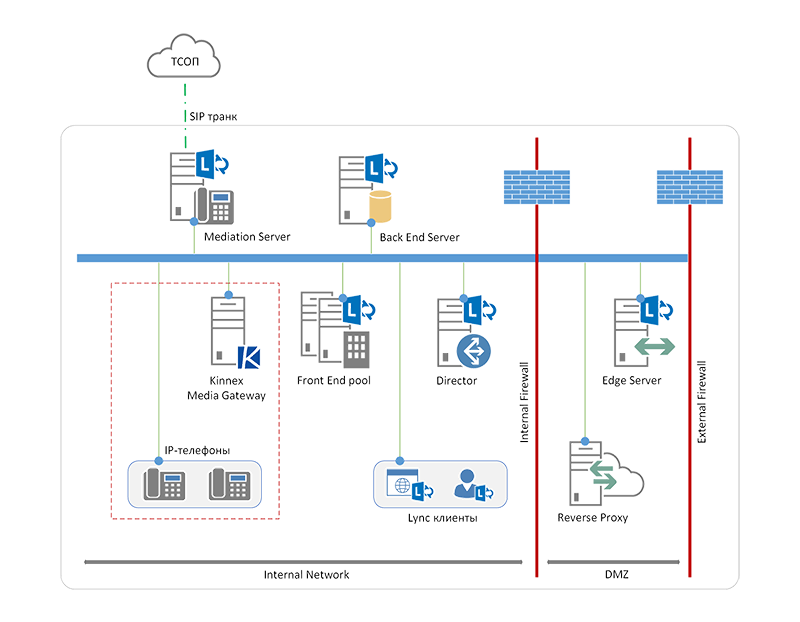

1. Kinnex Media Gateway installed on stand-alone physical or virtual server.

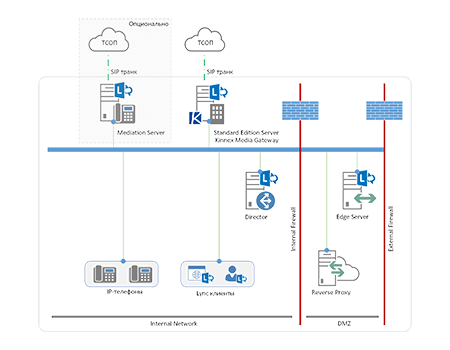

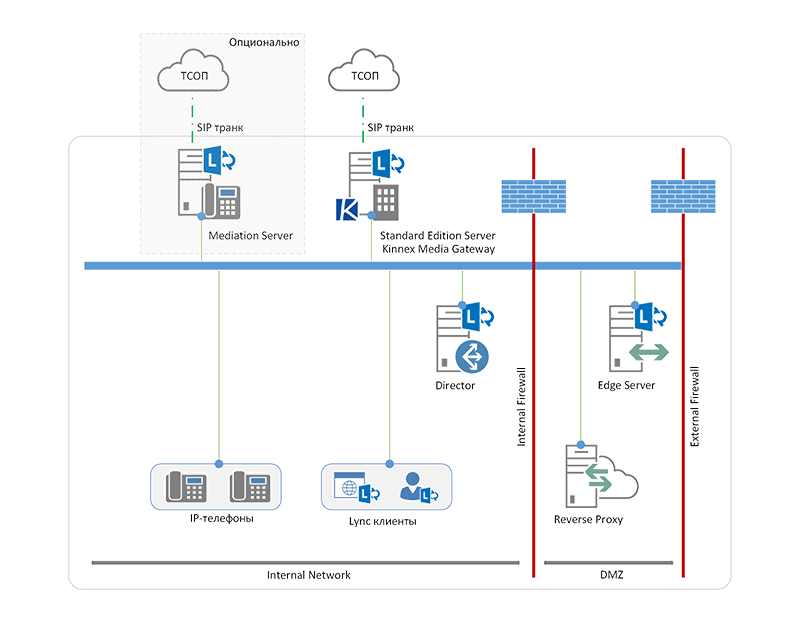

2. Kinnex Media Gateway collocated with the Standard Edition Server.

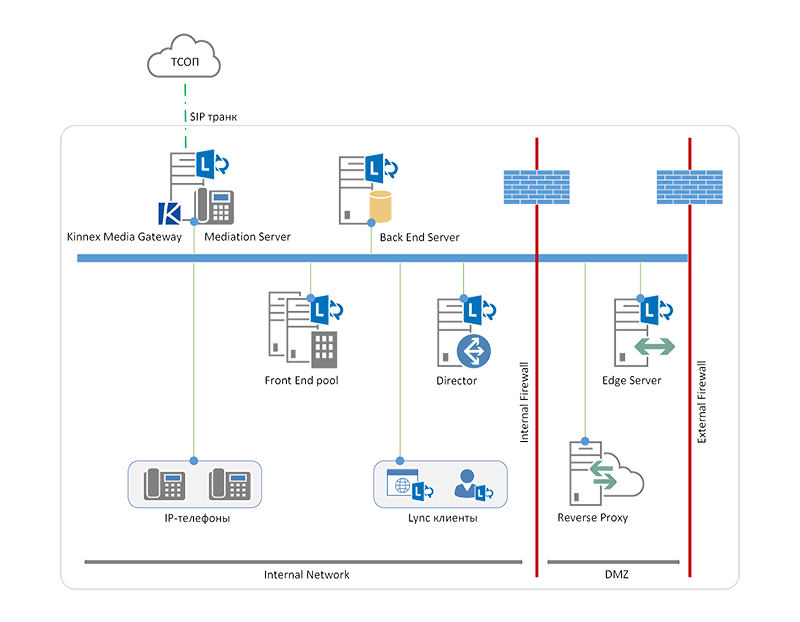

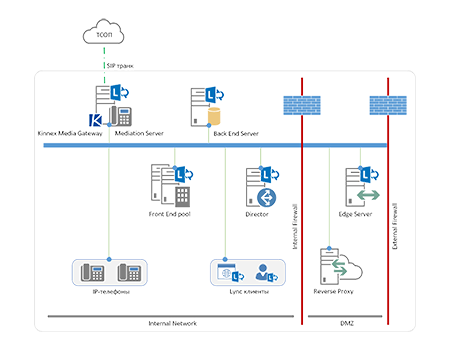

3. Kinnex Media Gateway collocated with Mediation Server.

The features and functions available for IP phones connected to the Lync/SfB Server via Kinnex Media Gateway. Some of the functions can be supported only by some IP phones, depending on model and manufacturer.

Calls

  • Make a call to a number
  • Make a call to a SIP URI/Lync/SfB client
  • Answer a call
  • Decline a call
  • End call

Hold

  • Place a call on hold
  • Resume a call
  • Switch between calls
  • Make a new call and put the active call on hold
  • Answer a call while already in a call

Redirect a Call

  • Redirect a call to voice mail
  • Redirect a call to number
  • Redirect a call to SIP URI/Lync/SfB client

Transfer Calls

  • Transfer a call to a number
  • Transfer a call to a SIP URI/Lync/SfB client
  • Consult someone before transferring a call

Call Forwarding

  • Forward a call to voice mail
  • Forward a call to a number
  • Forward a call to a SIP URI/Lync/SfB client

Presence

  • Auto update presence status
  • BLF (Busy Lamp Field)1

Lync/SfB Contacts1

  • View a contacts list
  • Search contacts
  • Make a call from the contacts
  • Transfer/Redirect/Forward a call to the contact

Voice Mail

  • Check voice mail
  • Change voice mail greeting
  • MWI (Message Waiting Indicator)1

Conferencing

  • Escalate a call to a conference call
  • Merge existing calls
  • Delete call from a conference

Provisioning

  • Firmware Auto Upgrade
  • Common IP Phone settings
  • Individual IP Phone settings by MAC

Protocols and Codecs

  • G.711(a/μ), G.722, G.723.1, G.726, G.729AB
  • SIP, ICE, TLS, RTP, SRTP

1 - Coming soon.

Minimum hardware and system requirements for average load on enterprise telephony. The average load is the number of simultaneous connections (internal and external) equal to 10% of the total number of IP phones in the topology.

1. Stand-alone Kinnex Media Gateway server.

Number of
users
up to 100 up to 300 up to 500 up to 1000
Operating System
  • Windows 7 SP1 Professional/Enterprise/Ultimate 64-bit
  • Windows Server 2008 R2 SP1 Standard/Enterprise/Datacenter 64-bit
  • Windows Server 2012 R2 Standard/Datacenter 64-bit
Additional Software
  • Microsoft Visual C++ 2010 Redistributable Package
  • Lync/SfB Server Administrative Tools
  • TFTP Server
CPU 64 bit
1-core
2.26 GHz
64 bit
2-core
2.26 GHz or higher
64 bit
2-4-core
2.26 GHz or higher
64 bit
4-core
2.26 GHz or higher
Memory 1 GB 2 GB 4 GB 8 GB
Disk At least 2 GB free disk space
Network 1 network adapter, 100 Mbps or higher 1 network adapter, 1 Gbps or higher

2. Kinnex Media Gateway collocated with one of the Lync/SfB Server roles. Additional hardware requirements.

Number of
users
up to 100 up to 300 up to 500 up to 1000
Additional Software
  • Microsoft Visual C++ 2010 Redistributable Package
  • TFTP Server
CPU 64 bit
1-core
2.26 GHz
64 bit
1-core
2.26 GHz or higher
64 bit
2-core
2.26 GHz or higher
64 bit
2-4-core
2.26 GHz or higher
Memory 0.5-1 GB 1 GB 1-2 GB 2-4 GB
Disk At least 2 GB free disk space
Network 1 network adapter, 100 Mbps or higher 1 network adapter, 1 Gbps or higher

3. Ports and Protocols.

Port Protocol Comment
5060 UDP (SIP) Incoming UDP connection requests from the IP-phones.
5060 TCP (SIP) Incoming TCP connection requests from IP-phones.
69 UDP (TFTP) Incoming UDP requests from IP-phones to TFTP server.
67/68 DHCP Used by Kinnex Media Gateway to find Lync/SfB Server certificate, Provisioning FQDN and Registrar FQDN.
1024-65535 TCP/UDP Media port range used for audio calls. Minimum of 20 ports required per one IP-phone.

Download

Version: 4.4.1132

Release Date: December 15, 2015

File Size: 29.0 MB
